GEPON ONU BOSA PX20 SC UPC APC Pigtail TX 1310nm FP RX 1490nm PIN 1.25G 1G FTTH FTTX

Brand Name : GIGAOPTO

Model Number : BOSA-EPONONU-PIN-SCUPC-REC

Certification : CE, FCC, ROHS, ISO9001, ISO14000, MSDS, REACH, CP65, TUV, UL

Place of Origin : China

MOQ : 1 pcs

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 500kpcs per month

Delivery Time : 1-5 working days

Packaging Details : 25pcs per Tray

Product Name : GEPON ONU BOSA PX20

Package : DFB +PIN-TIA

Distance : 20km

Data Rate(Gbps) : 2.5G/1.25G

Wavelength : Tx1310nm/Rx1490nm

Operating Temp.(℃) : -20~85℃

Output Power @25℃ : 1.6 - 3.5mW

Sensitivity @25℃ : < -29.5dBm

Keywords : GEPON ONU BOSA, SC UPC APC Pigtail

Contact Now

GEPON ONU BOSA PX20 SC UPC APC pigtail Receptacle TX 1310nm FP RX 1490nm PIN 1.25G 1G FTTH FTTX

DESCRIPTION

This BOSA is a high performance optical sub-assembly in single fiber by using 1310nm transmitter and 1490nm receiver.

The transmitter section uses a multiple quantum well 1310nm DFB laser supporting burst-mode operation. The receiver section uses a TO-can built in a long wavelength PIN diode and a 2.5Gbps Super transimpedance amplifier.

ABSOLUTE MAXIMUM RATINGS

Item Unit Min Max Note
Forward Current for LD mA -- 120
Reverse Voltage for LD V -- 2
Forward Current for MPD mA -- 2
Reverse Voltage for MPD V -- 15
Optical Power for Rx dBm 5 --
APD Forward Current mA -- 2
APD Reverse Current mA -- 3
APD Reverse Voltage V Vbr
TIA Supply Voltage V -0.4 4
Operating Temp °C -5 75
Storage Temperature °C -40 85
Storage Relative Humidity % -- 85
Solder Reflow Temperature °C -- 260 (*1)

(*1): For soldering by iron and 10 seconds on leads

Transmitter Electro-Optical Characteristics (TC=25°C, CW)

Item Symbol Test Condition Min. Typ. Max. Unit
Threshold Current Ith Tc=25°C -- 10 15 mA
Tc=-5~75°C 1 -- 50 mA
Optical Output Power (*2) Pf If=Ith+20mA, Tc=25°C 1.6 -- 3.5 mW
If=Ith+20mA, Tc=-5~ 75°C 1.0 -- -- mW
Slope Efficiency η If=Ith+20mA, Tc=25°C 0.08 -- 0.175 mW/mA
If=Ith+20mA, Tc=-5~ 75°C 0.05 -- -- mW/mA
Forward Current If Pf=2.5mW, Tc=-5~75°C -- -- 70 mA
Forward Voltage Vf If=Ith+20mA -- 1.1 1.5 V
Rise/Fall Time tr/tf 20%~80% -- 0.1 0.2 ns
Central Wavelength lc If=Ith+20mA, Tc=25°C 1300 1310 1320 nm
If=Ith+20mA, Tc=-5~75°C 1290 -- 1330 nm
Spectrum Width (RMS) Dl If=Ith+20mA, Tc=-5~75°C -- 0.32 1.0 nm
Side Mode Suppression Ratio SMSR If=Ith+20mA, Tc=-5~75°C 30 -- -- dB
Monitor Current Im If=Ith+20mA, Tc=-5~75°C 100 -- 1000 mA
Monitor Dark Current Id Vrp=5V -- -- 100 nA
Monitor Capacitance C Vrp=5V, f=1MHz 4 -- 15 pF
Tracking Error (*3) TE Tc=-5~ 75°C -1.5 -- 1.5 dB

(*2): Launched into 9/125mm SMF

(*3): DPf =10x log (Pf (Tc) /Pf (25°C)), Im hold(@Pf=2mW, 25°C)

Receiver Electro-Optical Characteristics (TC=25°C, Vcc=3.3V)

Item Symbol Test Condition Min. Typ. Max. Unit
Supply Voltage Vcc 3.0 3.3 3.6 V
Supply Current Icc No loads -- 20 24 mA
Operating Wavelength l Tc=-5~75°C 1480 -- 1500 nm
Sensitivity Sen 2.5Gbps, PRBS23, ER=10dB, BER=10E-10, RL=50Ω, NRZ -- -- -29.5 dBm
Overload OL -7.0 -- -- dBm
Output Impedance Rout Single end 40 -- 60 Ω
Differential Output Voltage Vpp 100Ω differential load, 2.5Gbps -- -- 1000 mV
Dark Current Id Vcc=3.3V, no input -- -- 150 nA
Optical Return Loss ORL1310 1310nm -- -- -15 dB
ORL1490 1490nm -- -- -20 dB
Optical Crosstalk X-talk 1310nm/1490nm -- -- -47 dB
Optical Isolation from External Source ISO1 l=1441~1450nm 25 -- -- dB
l=1530~1539nm
ISO2 l=1260~1440nm 35 -- -- dB
l=1540~1625nm
Parameter Symbol Min. Typ. Max. Unit Note
Mode Field Diameter 8 9 10 mm
Gladding Diameter 123 125 127 mm
Fiber Macro bend Loss 0.05 dB Radius 16mm
Optical Connector Insertion Loss -- -- 0.4 dB SC/UPC connector
Fiber Bending Radius 25 -- -- mm
Fiber Diameter 0.8 0.9 1.0 mm
Fiber Length 210 -- 250 mm L
Fiber Operation Temperature 75 -- -- °C
Pull Force on LD Assembly 30 -- -- Kgw
Pull Force on APD Assembly 15 -- -- Kgw
Shear Strength on XY Welding 30 -- -- Kgw
Tension Force on Fiber Pigtail 10 -- -- N

(*4): Connector fiber end face accord with IPC-8497-1

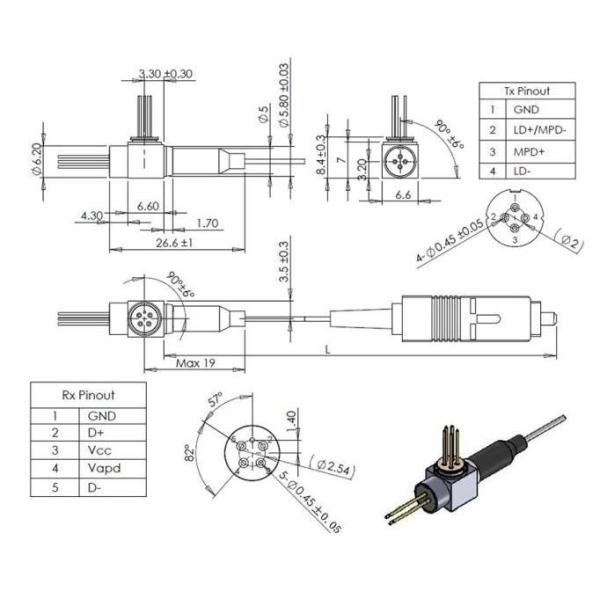

Dimension Outline

GEPON ONU BOSA PX20 SC UPC APC Pigtail TX 1310nm FP RX 1490nm PIN 1.25G 1G FTTH FTTX
